| AMS-2091 |
 |

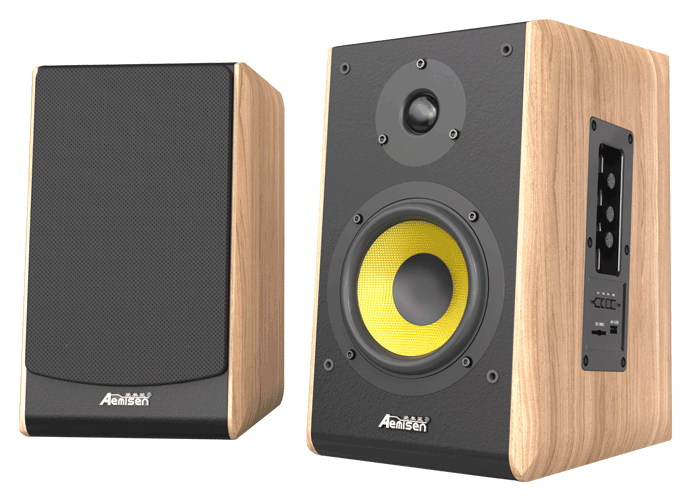

AMS-2091 2 active speaker series
1 、 power amplifier adopts high efficiency HIFI level imported digital chip TC, combined with high-power switching power supply, powerful and powerful, and energy saving and environmental protection.
2, unit configuration of a 26mm membrane silk ball tweeters and a 5.25 inch woofer; large diameter silk dome tweeter tone, clear transparent nature of powerful, rich details and better feedback; midrange unit 5.25 inches using glass fiber membrane materials with high strength and damping long stroke, high power linear displacement design have a fever level increased the large dynamic frequency output capacity of the bass unit, while reducing the distortion of the low frequency majestic full force control.
3, the box is made of high density fiberboard (MDF) shaped design, reduce the standing wave, the anterior slope design can effectively reduce the phase delay and interference effect, the tweeter position relatively rearward, ensure high bass is delivered to a distance equal to the listener, listening time can be phase correction function. Thick plate on both sides of the wing can reduce the resonance case, make quality clear net refreshing, but also makes the reference sound axial point directly to the listener ears, let the listener can hear the direct sound and accurate axial, not smooth directional response.
The box body 4, white matte paint process collocation maple wood veneer, the overall appearance is fashionable, reveal a kind of elegant and luxurious temperament, the classic design table in the box.
Product power amplifier
Standard Bluetooth 4, USB/SD with memory card reading function, the main volume, high and low knob adjustment, all the way AUX/DVD signal input, all the way 3.5PC signal input.
Product basic parameters
Speaker unit: 5 inches mid bass +2 inch film tweeter
SNR: > 80dB
Rated power: 120W
Frequency response: 65HZ-20KHZ
Output power: 2*60W
Distortion: less than or equal to 1%, 1W, 1KHZ
Box size: 33.5* 26.5CM long, 19.5* deep
Packing size: high 46.5* long 31* deep 37.5CM
Appearance: PU leather finishing process / collocation of top grade birch grain sticking leather |
|
|
|
|
|
|
 |
